FPV Battery Charging Hub For DJ FPV Intelligent Flight Battery AC Power Adapter Car Charger Stock For FPV Accessoeries

• For FPV Intelligent Flight Battery Requires FPV Battery Charger Charge Up to 3 Batteries in Sequence Charges Based on Available Battery Power

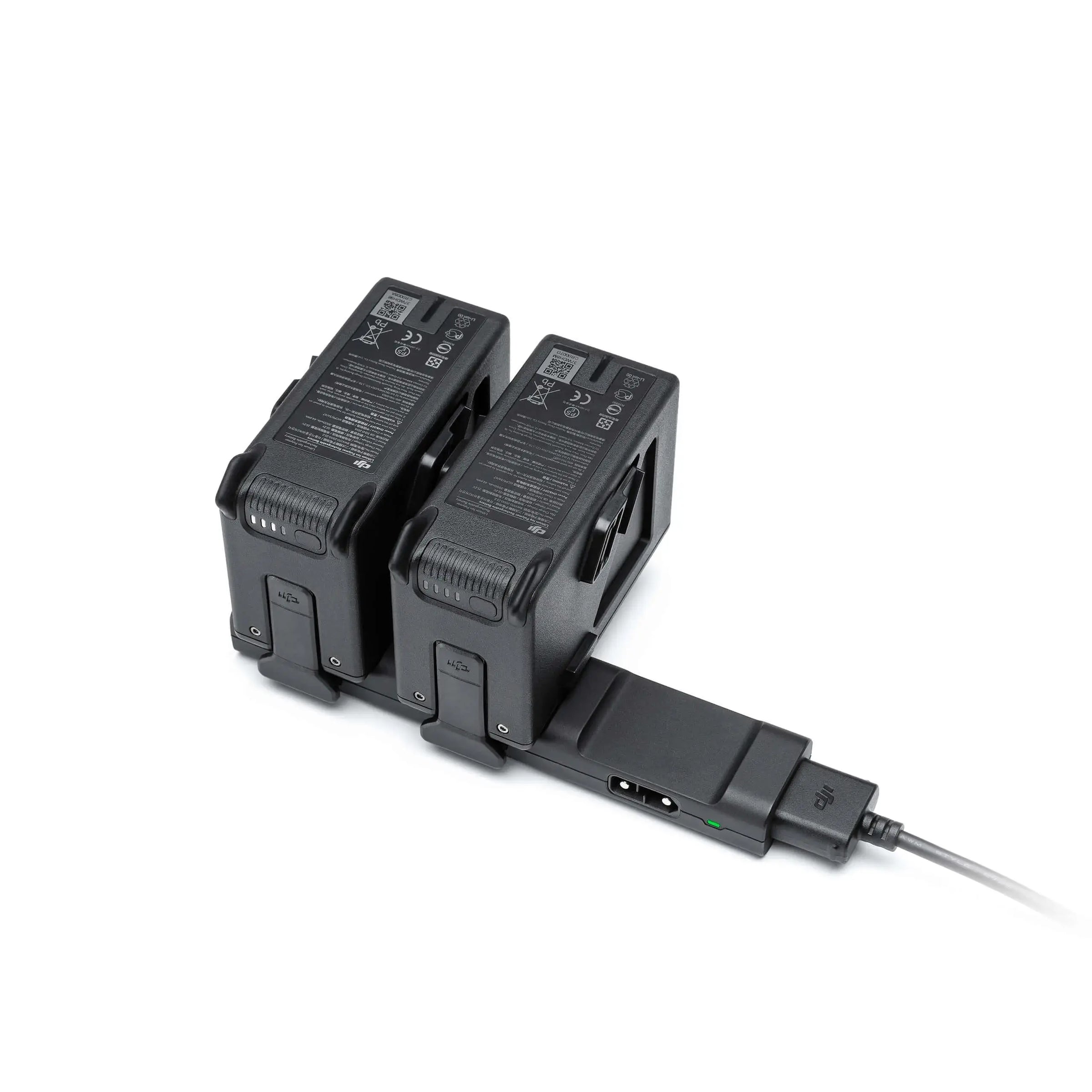

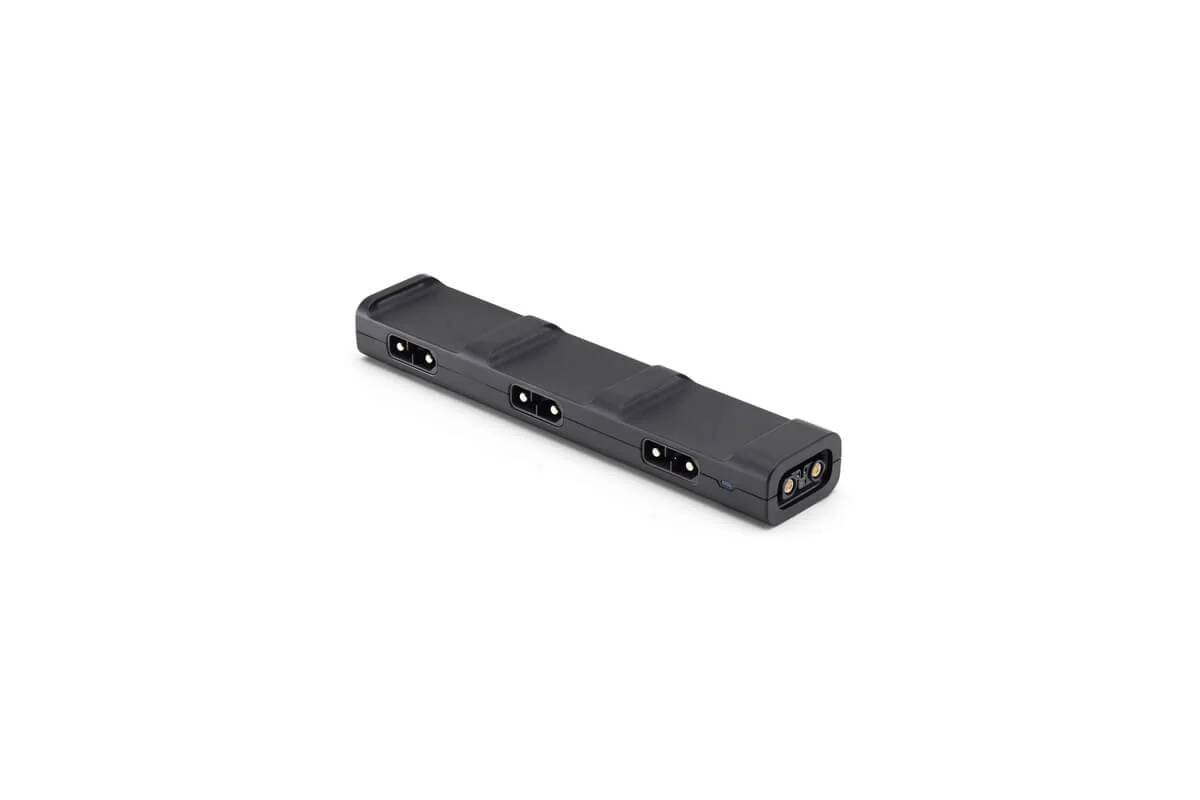

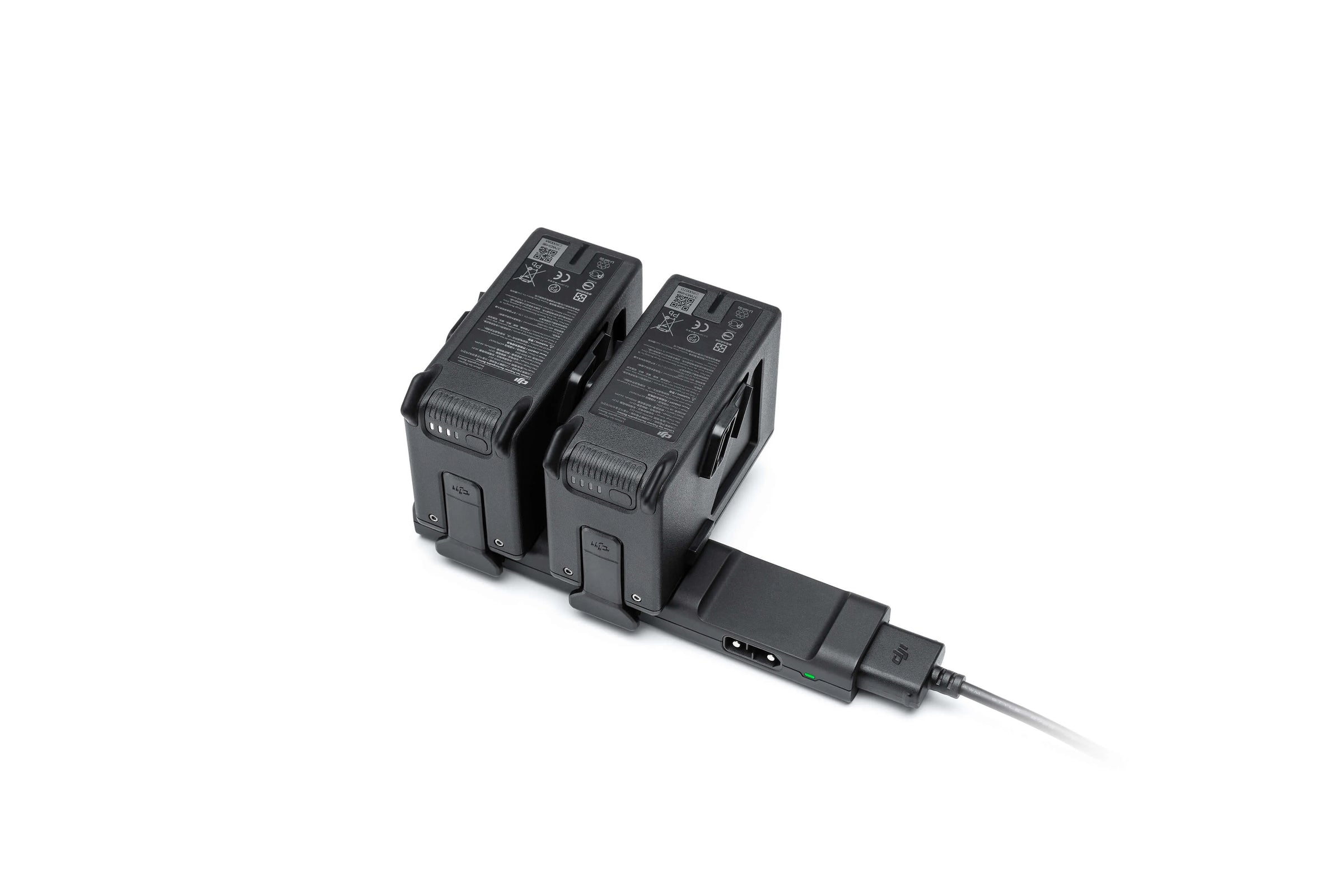

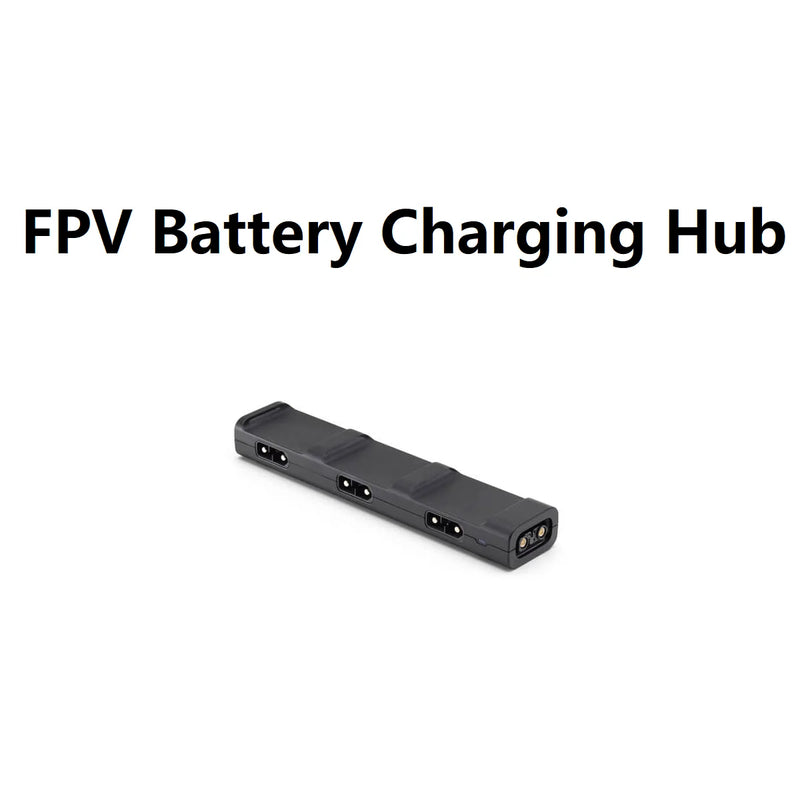

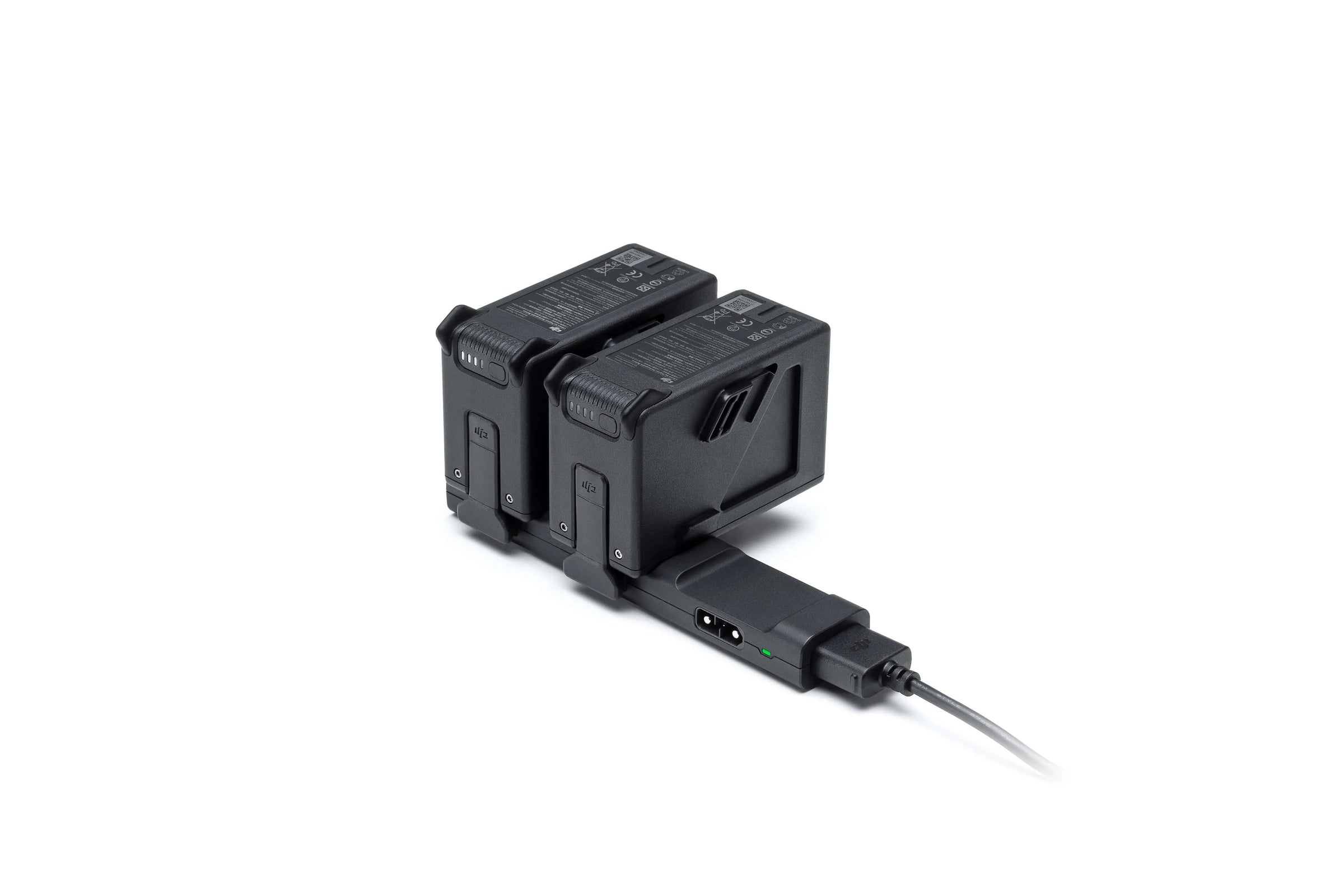

With the DJI FPV Battery Charging Hub, you can conveniently recharge up to three FPV flight batteries unattended. The hub requires a DJI FPV Battery Charger (not included) to draw power from an available AC outlet. Once plugged in, the hub can detect the battery life of each connected battery. It will then charge each battery in sequence, starting with the battery with the most power left. That way, you can grab that battery and get into the air as fast as possible. A full single battery recharge takes only approximately 55 minutes, and a status LED will provide essential charging information.

LED Status Indicator

Solid yellow: No battery attached

Pulsing green: Charging

Solid green: All batteries are fully charged

Blinks yellow: Battery temperatures are either too low or too high

Solid red: Power supply or battery error

Compatibility

Power adapter: CDX170-90

Battery model: BWX170-2000-22.2

For FPV Battery Charging Hub
